Rated Load (Kg) : 100KG, 500KG, 2Ton, 5Ton

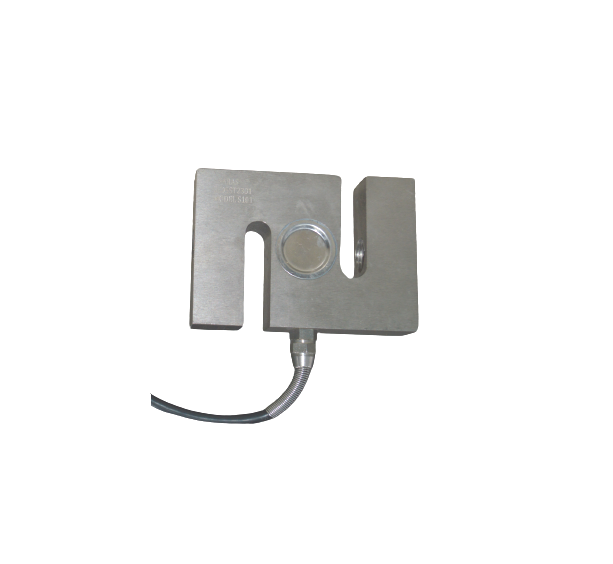

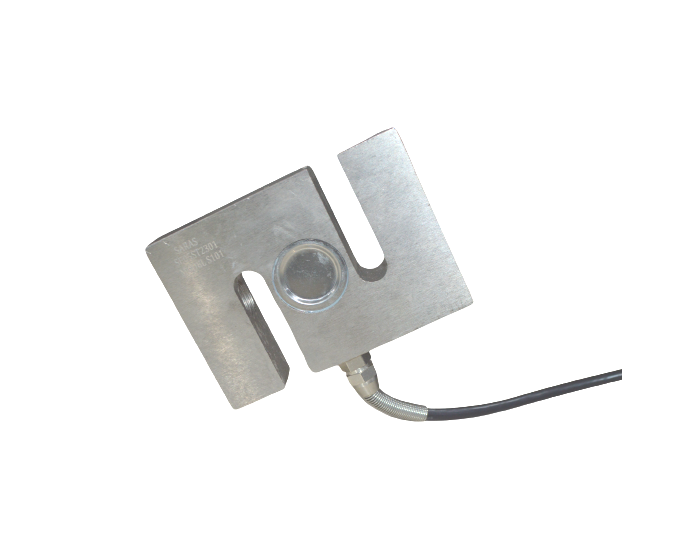

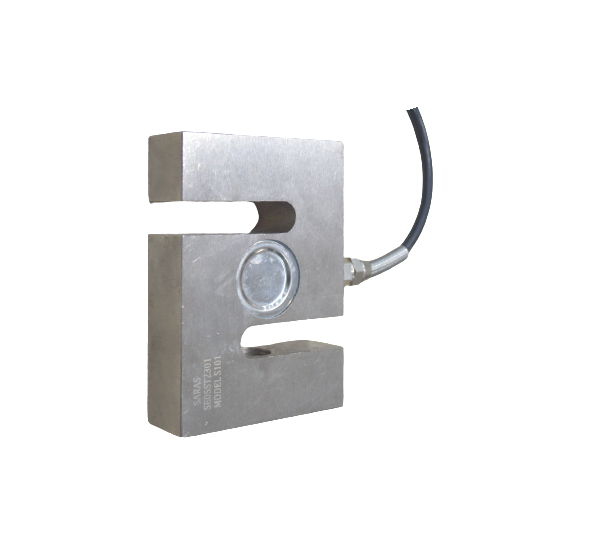

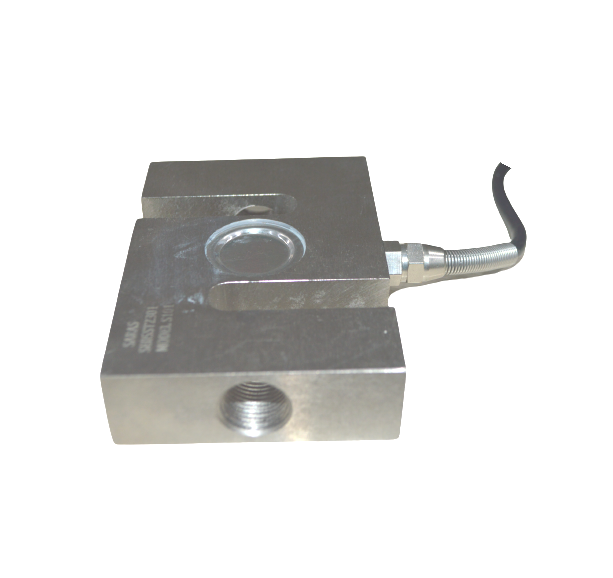

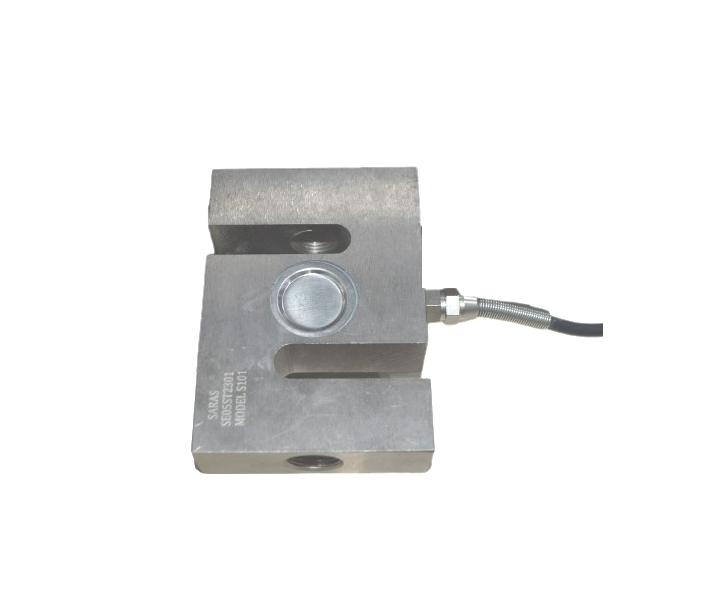

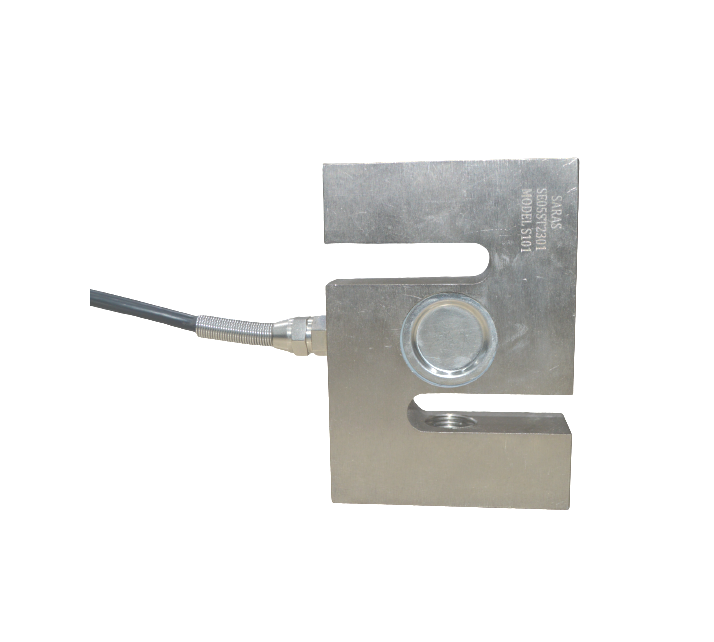

We are the known Importer and Supplier of durable Load Cell.The unique features of this product are having the S Shape & its variable used in many industries. We use high graded stainless steel materials to make this product.
Product Details
|
Precision : C2 & C3
|
Temp. effect on span(%F.S/10oC) : ±0.017 & ±0.011
|
|
Comprehensive error(%F.S) : ±0.03 & ±0.02
|
Temp. effect on zero(%F.S/10oC): ±0.023 & ±0.015
|
|
Rated output(mv/v) : 2.0±0.004
|
Compensated temp. range(oC ) : -10 to +40
|
|
Creep(%F.S/30min) : ±0.024 & ±0.016
|
Use temp. range(oC ) : -20 to +55
|
|
Zero balance(%F.S) : ±1.0
|
Excitation voltage(V) : 9 - 12(DC)
|
|
Input resistance(Ω) : 350±5
|
Safe overload (%F.S) : 150
|
|
Output resistance(Ω) : 350±3
|
Ultimate overload (%F.S) : 200
|
|
Insulation resistance(MΩ) : ≥5000(100VDC)
|
Defend grade : IP66
|
|
Rated load
|
100 kg - 5Ton
|
