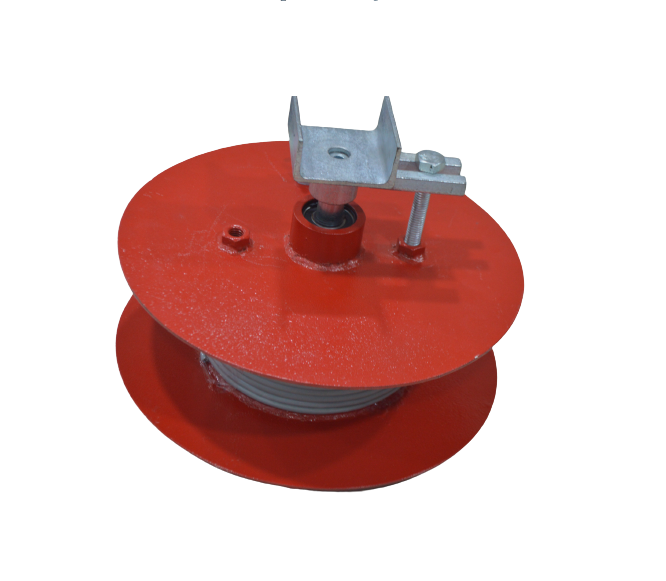

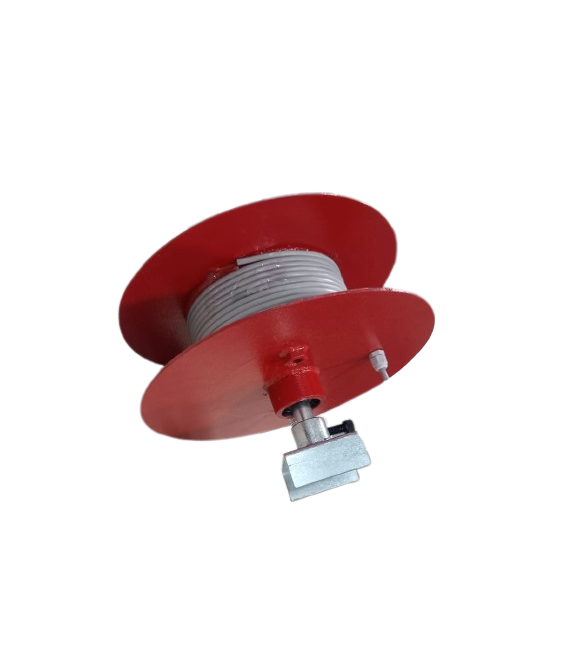

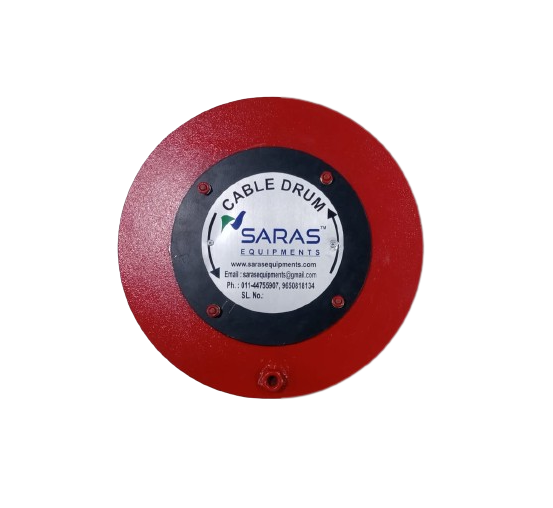

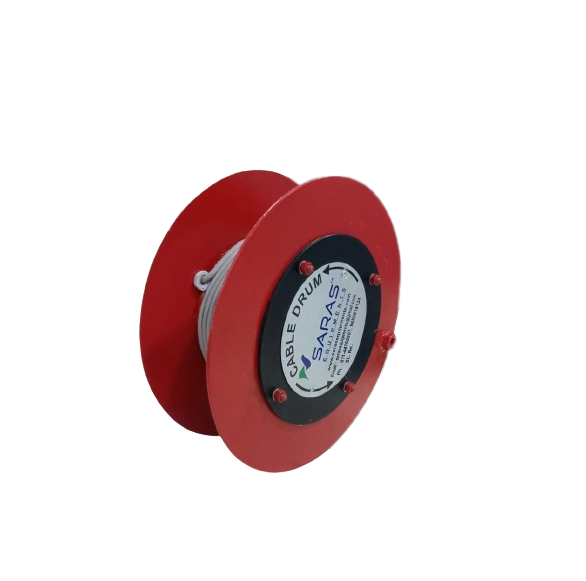

Cable Drum for measures the boom angle of the crane through resistive type sensing device. The angle sensor is designed to measures angle from 0 degree to 90 degree.it is specially design for boom of the crane for provide better accuracy.
Specification:
| Material of Construction: | MS 31 |
| Mounting: | Directly on boom or flexible assembly |
| Rope Diameter: | 8mm to 45mm |
| Sheave Diameter: | 100mm, 15mm |
| Angle Sensor: | Inbuilt |
| Maximum Capacity: | 800 Ton |
| Maximum Length: | As Required |
| Linearity: | +- % of full scale |
| Operating Temp: | -0 °C to 60°C |
| IP standard: | IP 67 |
| Life: | 5 Years |
| Usage: | Industrial, Cranes |
