About Tension Meter For Single Girder

Enquire for Best Offer!

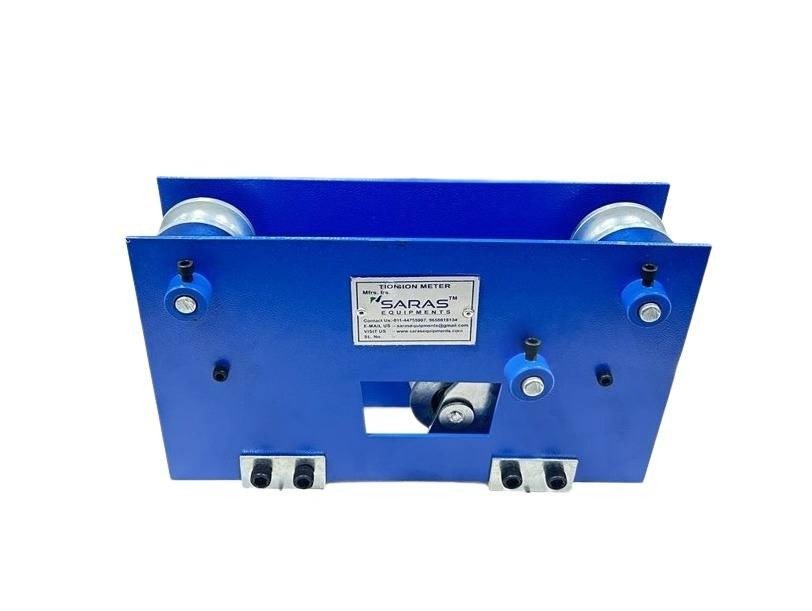

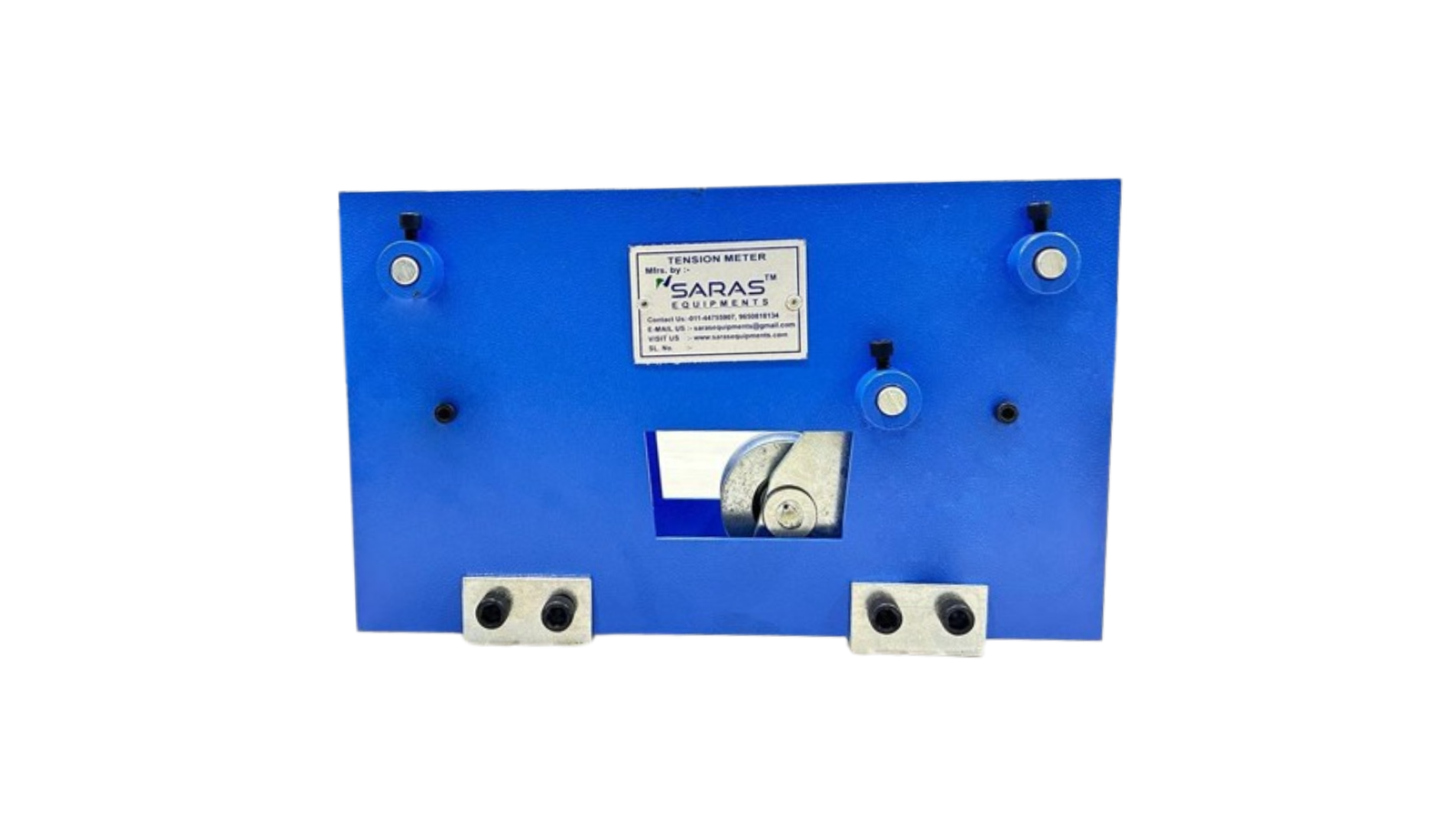

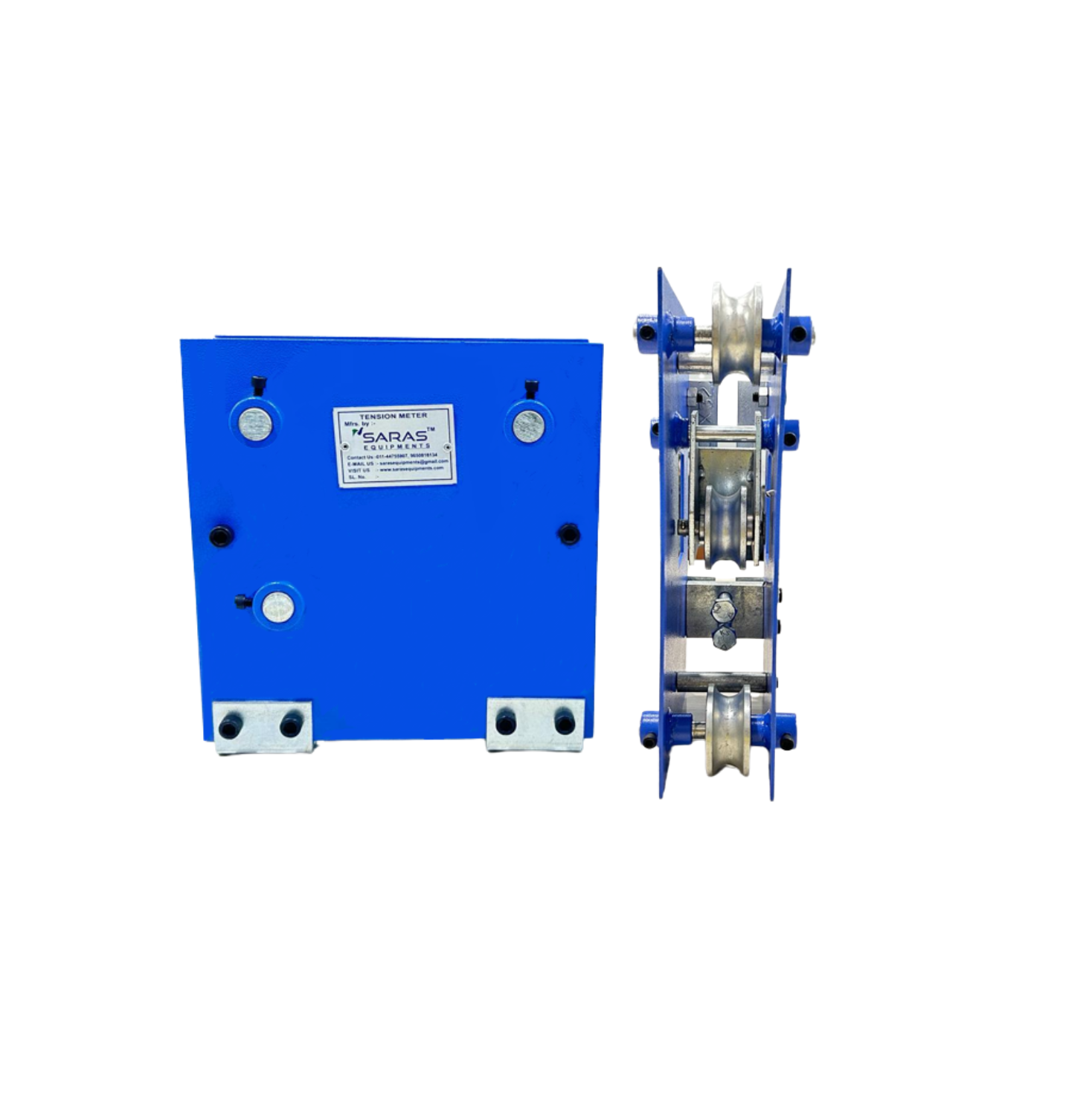

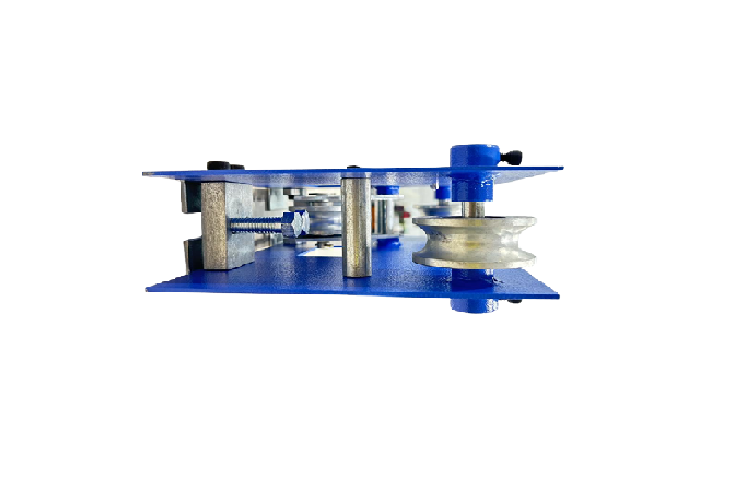

Tension Meter for Crane

Tension Meter for Crane is a Device used to Measure Tension in Crane rope. Tension Meter commonly use a 3 roller system where the Rope Travels through the Rollers Causing Deflection in the Center Roller that is Connected to the Load Cell and Digital Indicator.



Specification:

Material of Construction:    MS-31.
Bearings:                            6 Nos.
Mounting:                          Directly on boom or flexible assembly
Rope Diameter :                8mm to 45mm
Maximum Capacity:          As required
Linearity:                          +-2% of full scale
Operating Temp :              -10 °C to 60°C
No of pulley:                     03
IP standard:                      IP 67
Life:                                  5 Years
Usage:                            Crane Rope, Running Rope


Specifications

We are Engaged in Manufacturing and Supplying of Tension Meter for Cranes. Offered Assortment is used for Calculating the Load Through Tension On The Rope of the Crane. These Products Are an Indirect Way to Determine the Carry Load of the Cranes. Our product Range is Widely used for Construction Cranes for Safety.
