About Wire Anemometer
15000.00 | In Stock

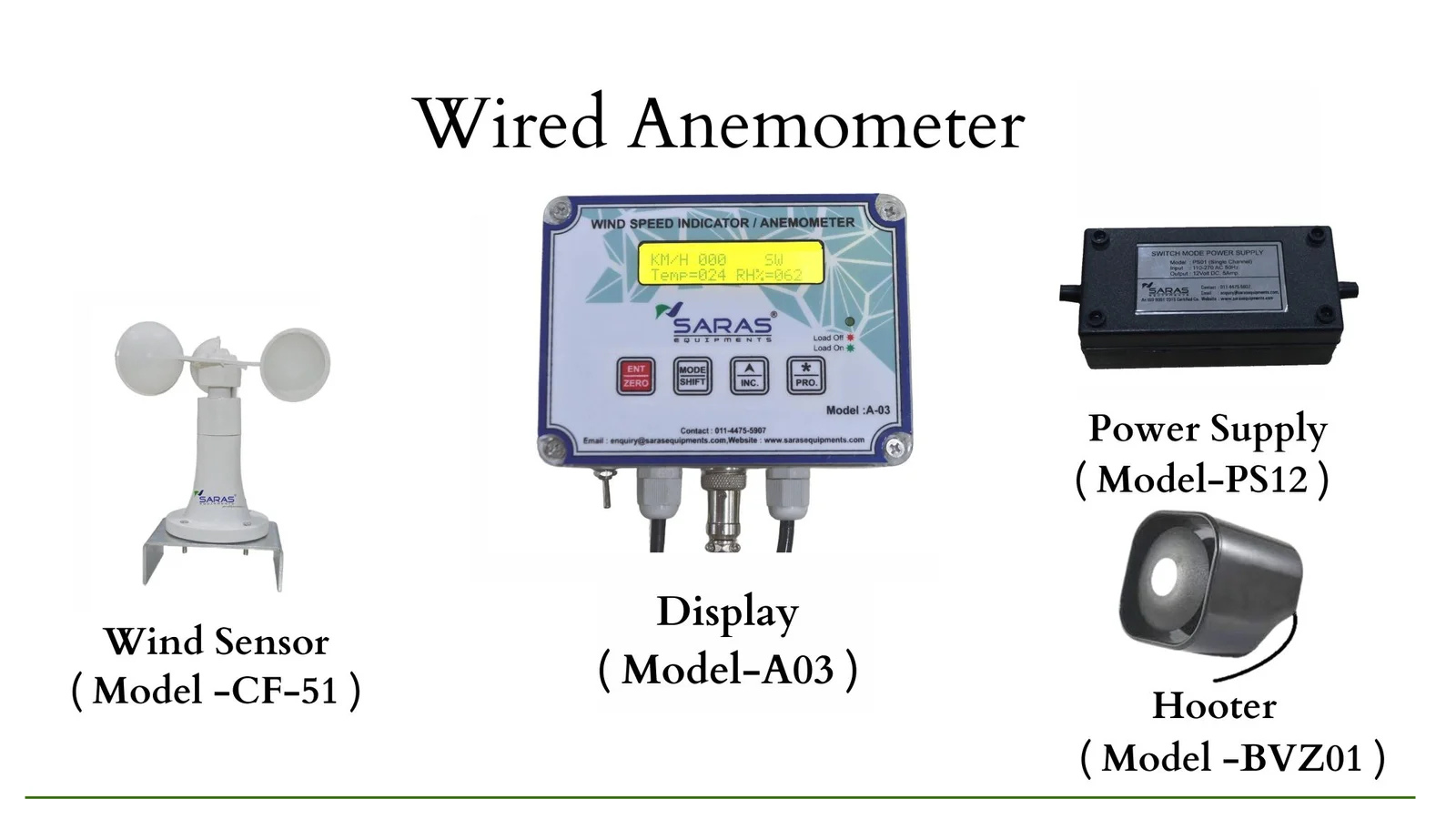

Wire Anemometer for Crane / Wind Speed Sensor is mechanical rotate sensor, digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the sensor, it outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation. Sensor external parts all are made of alloy material and finish by surface powder coating, featured with water proof, corrosion resisting. Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in. SARAS-A02 wind speed sensor is build-in electronic automatic heating system, when temperature falls to under 0°C, system will automatic heating, melting ice to prevent external turning parts freeze.
Specification:-
| Model |
A02 |
| Power supply: |
(12V/24V) DC and 220AC |
| Testing range: |
0.5m/s~50m/s |
| Start wind speed: |
≤0.5m/s |
| Accuracy: |
±0.5m/s (<5m/s) (±3%FS (≥5m/s) |
| Working Environment Temperature: |
-40°C~+70°C (±0.5°C) |
| Limit wind speed Max: |
60m/s 30min |
| Environmental Protection: |
IP65 |
| Relay Cut Off: |
Yes |
| Over Speed Buzzer: |
Yes |
| Warranty: |
1-year warranty. |
| Batteries: |
No |
| Fan Box Dimensions: |
(L*H*W) MM 195*62*90 MM |
| Wire Range: |
Upto 100 Mtr.* |
| Display Box Dimensions: |
(L*H*W) MM 160*140*60 |
| Colour As per Image uploaded: |
It may vary 5-10% |
